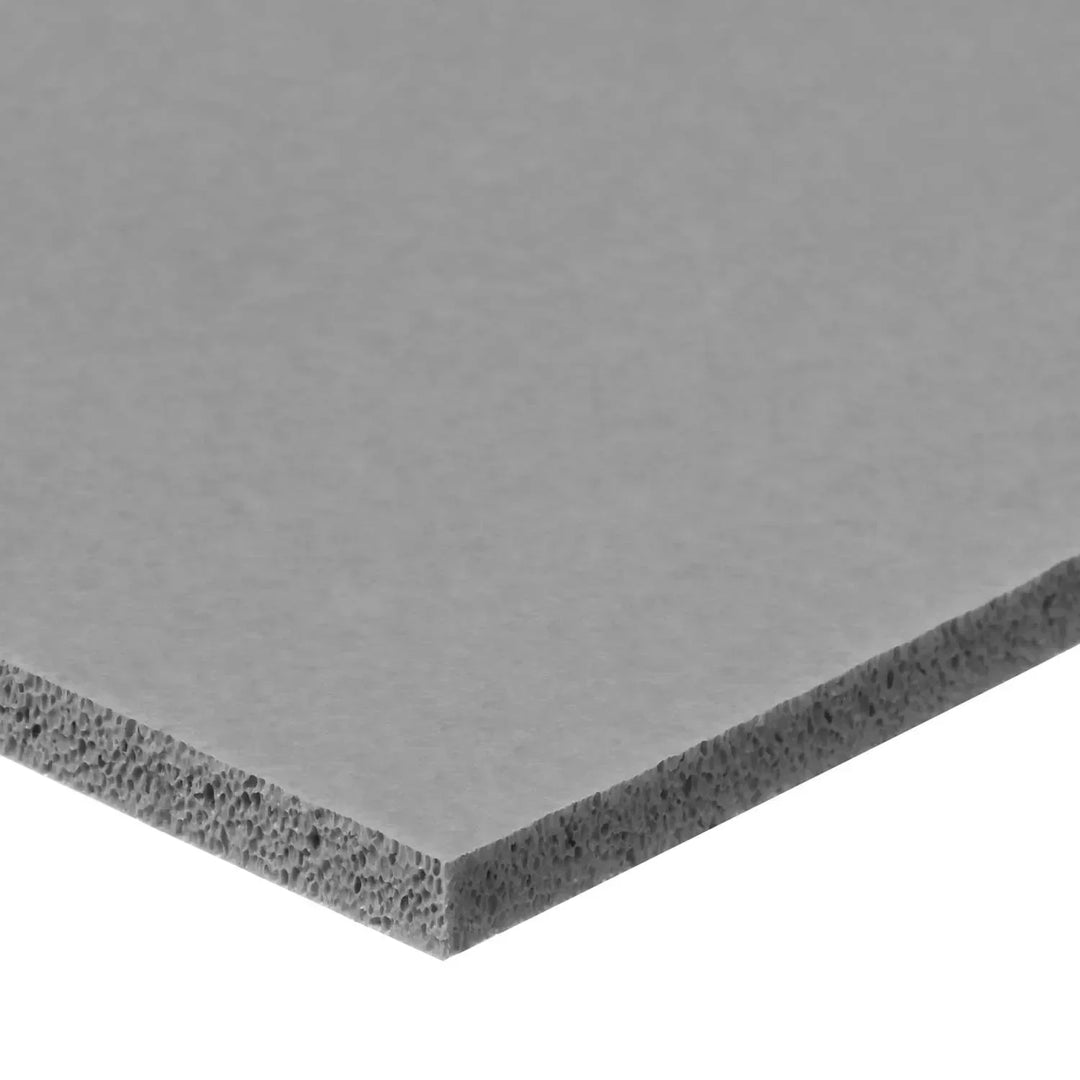

1/4" Gray 820 Silicone Foam - Firm Density - 36" Wide Roll
Regular price
$7435
$74.35
Regular price
Sale price
$7435
$74.35
/
- In stock, ready to ship
- Backordered, shipping soon
- Carbon neutral
- Secure payments
- Contact Us for Custom Cuts
Contact us for:
- Double Coated High Performing Acrylic Tape ($12.60 per foot, will take 10-12 business days to ship)
- Other custom sizes or cuts
| Specifications | Test Standard | Value |
|
Physical items |
||
| Color |
Per Request | Black, Gray, Brick Red, White |
| Thickness |
0.063" - 0.500" |
|
| Width |
19.5" & 36" |
|
| Density (lb/cft) |
26 +/- 2 |
|
| Compression Set (%) |
ASTM D1056 Test D |
<5% (100° C) |
| Compression Force Deflection (psi) | Force measured @ 25% Deflection ASTM D 1056 | 16 |
| Tensile Strength (psi) |
ASTM D412 |
58 |
| Elongation Rate (%) |
ASTM D412 |
>100 |
|
Fire Resistance |
||
| Fire Resistance |
UL94 |
V-0 & HF-1 |
| Fire Spread Index |
ASTM E162 |
<25 |
| Smoke Density |
ASTM E662 |
<100 (1.5 Min) / <200 (4 Min) |
| Toxic Gas Emission Rating |
SMC-800 |
PASS |
|
Environment Specifications |
||
| Water Absorption |
Internal Test 24 Hours |
<5% |
|
IP67 (Application) |
||
| FDA CFR772600 part C for food usage |
Black, Gray |
|
|
Electrical and Thermal Conductivity |
||
| Dielectric Constant |
ASTM 150 |
5.81 |
| Insulation Strength |
ASTM D149, Vplts/mil |
88.9 |
| Dry Arc Resistance |
ASTM D495, Seconds |
96 |
| Volume Resistivity (ohm-in) |
ASTM D257 |
3.94 x 1014 |
| Thermal Conductivity (BTU in/hr/ft2/°F) |
ASTM C518 |
0.616 |
|
Temperature Resistance |
||
| Flexing at -55°C |
ASTM D1056 |
PASS |
| Working Temperature |
SAE J2236 |
-55 to +200°C |
| Intermittent Temperature |
Internal Test |
250°C |
